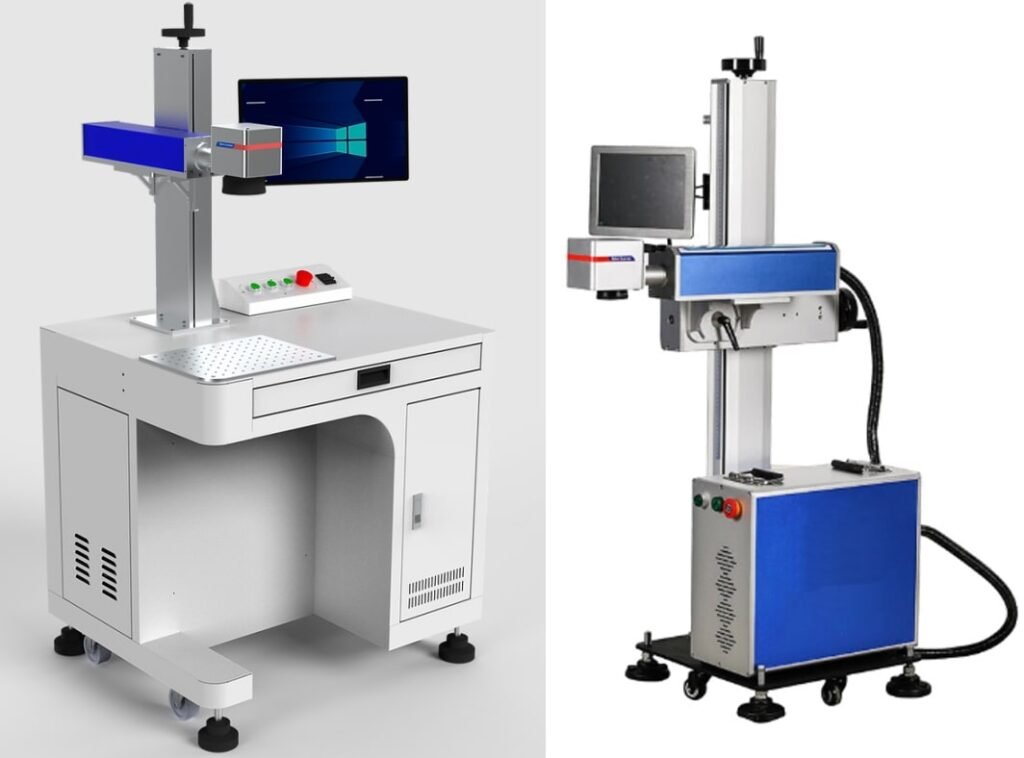

LASER Fiber Metal Making Machine
Key Features
LASER Source: 20-100W power, 1064nm wavelength, 20-80kHz modulation.
High-Speed Galvo: Up to 7000mm/s, 0.001mm resolution, ±0.003mm precision.
Marking Range: 110x110mm to 300x300mm, 0.01mm min line width, 0.2mm min character height.
Optical Isolation: Enhances safety and performance stability.
Air Cooling System: 0.5KW, 220V/50-60Hz (110V optional).
Adjustable Table: 285mm stroke for flexible positioning.
Environmental Tolerance: Operates in 0-35°C, up to 90% humidity.
Compact Design: Lightweight and portable for easy integration.
Low Maintenance: Minimal upkeep with durable components.
